5kVA Solar Power & Battery Backup Kit

Enhanced Home Solar Solution

• Efficient 5kVa system with 10kWh battery storage, designed for reliable home power and extended backup capability
• High-output 6.9kW solar array (15 x 460W JA-Solar Monocrystalline panels) for maximum energy generation to charge batteries in approx 1-2 hours of peak sunshine and then provide power to your load
• Complete mounting hardware and professional-grade cabling package included
• Professional-grade system perfect for standard residential applications with enhanced solar production

Solar Kit Components

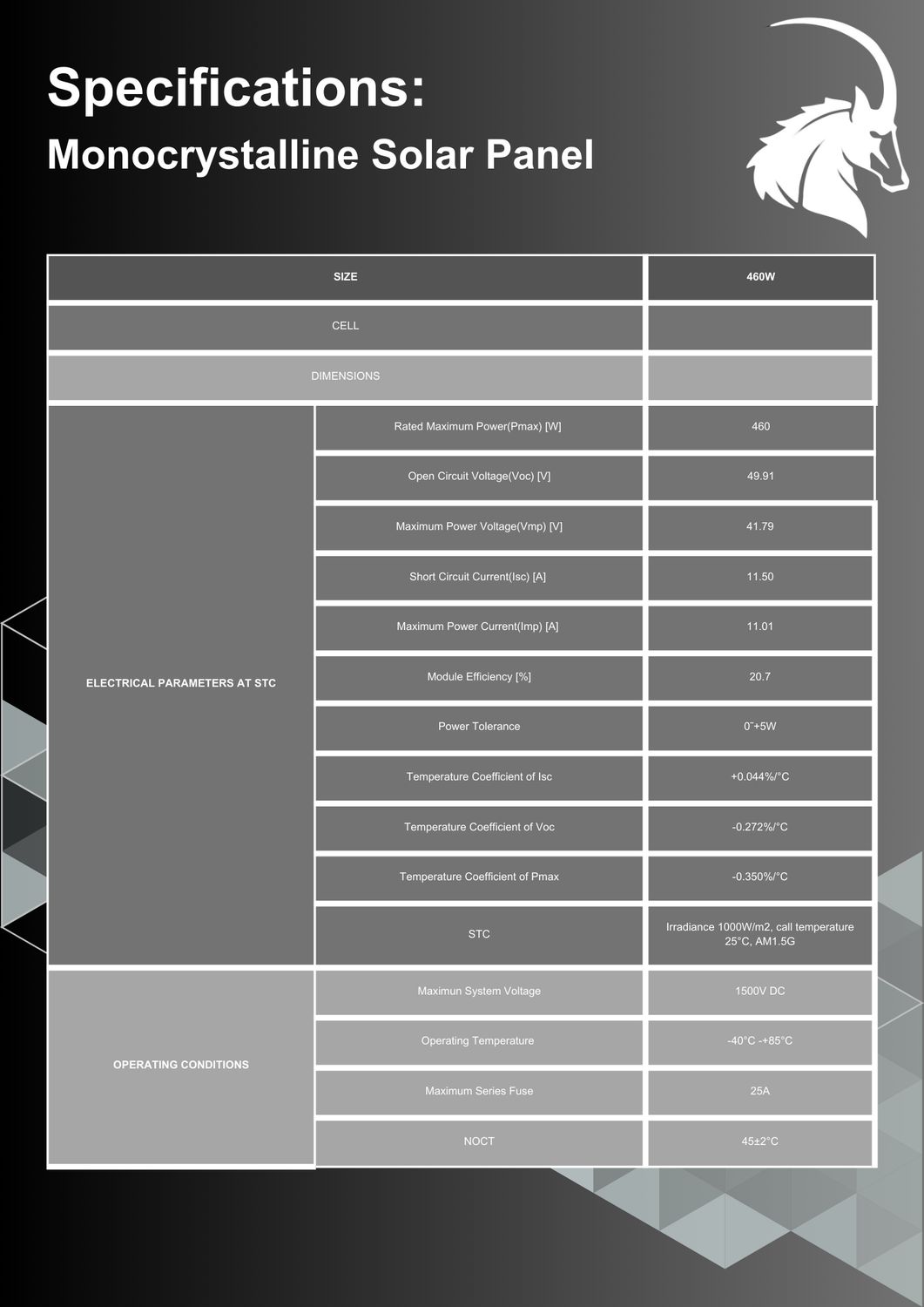

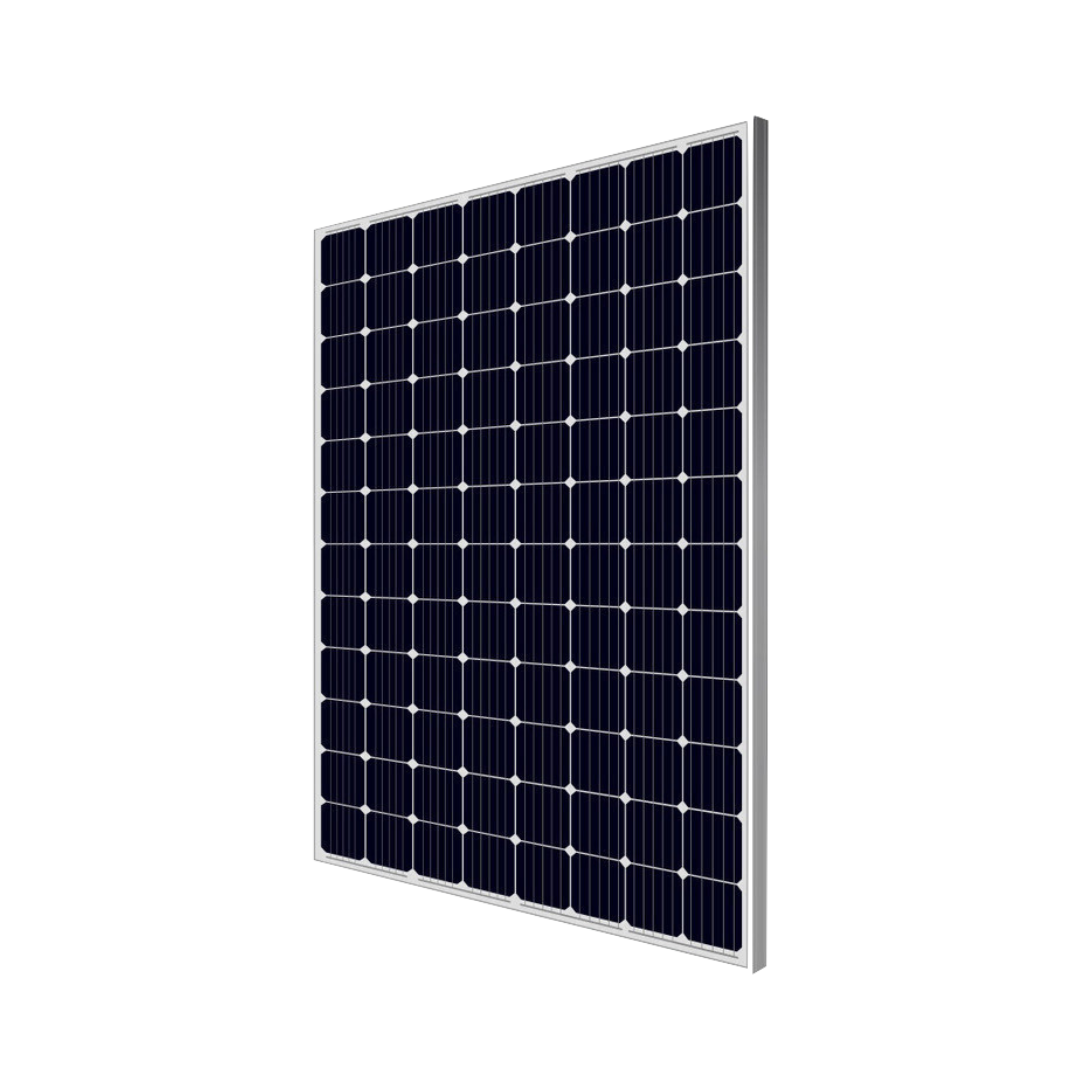

• 15 x 460W JA-Solar Monocrystalline Panels
• 12 x End mounting brackets
• 24 x Middle mounting brackets
• 15 x MC4 connectors
• 150m red solar cable
• 150m black solar cable

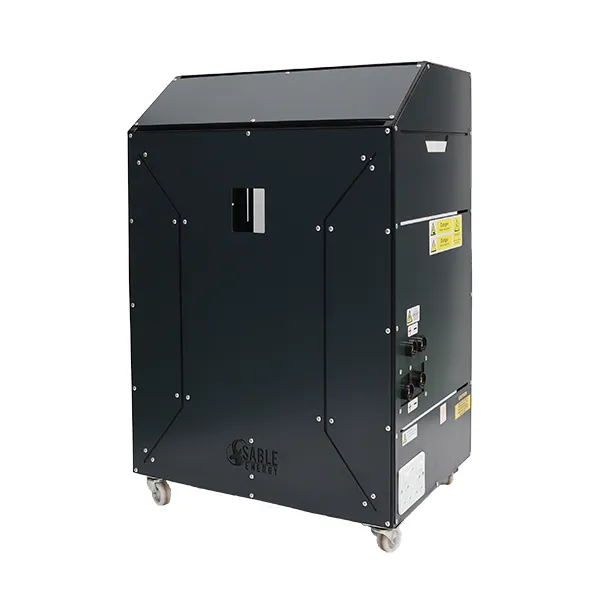

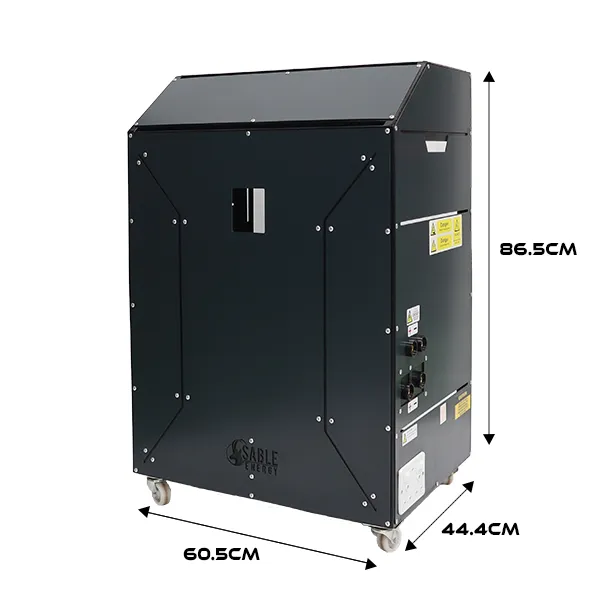

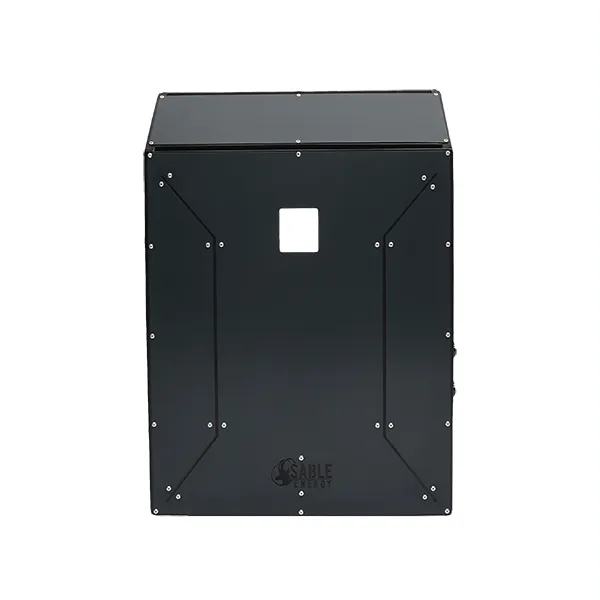

• 10kWh battery storage system

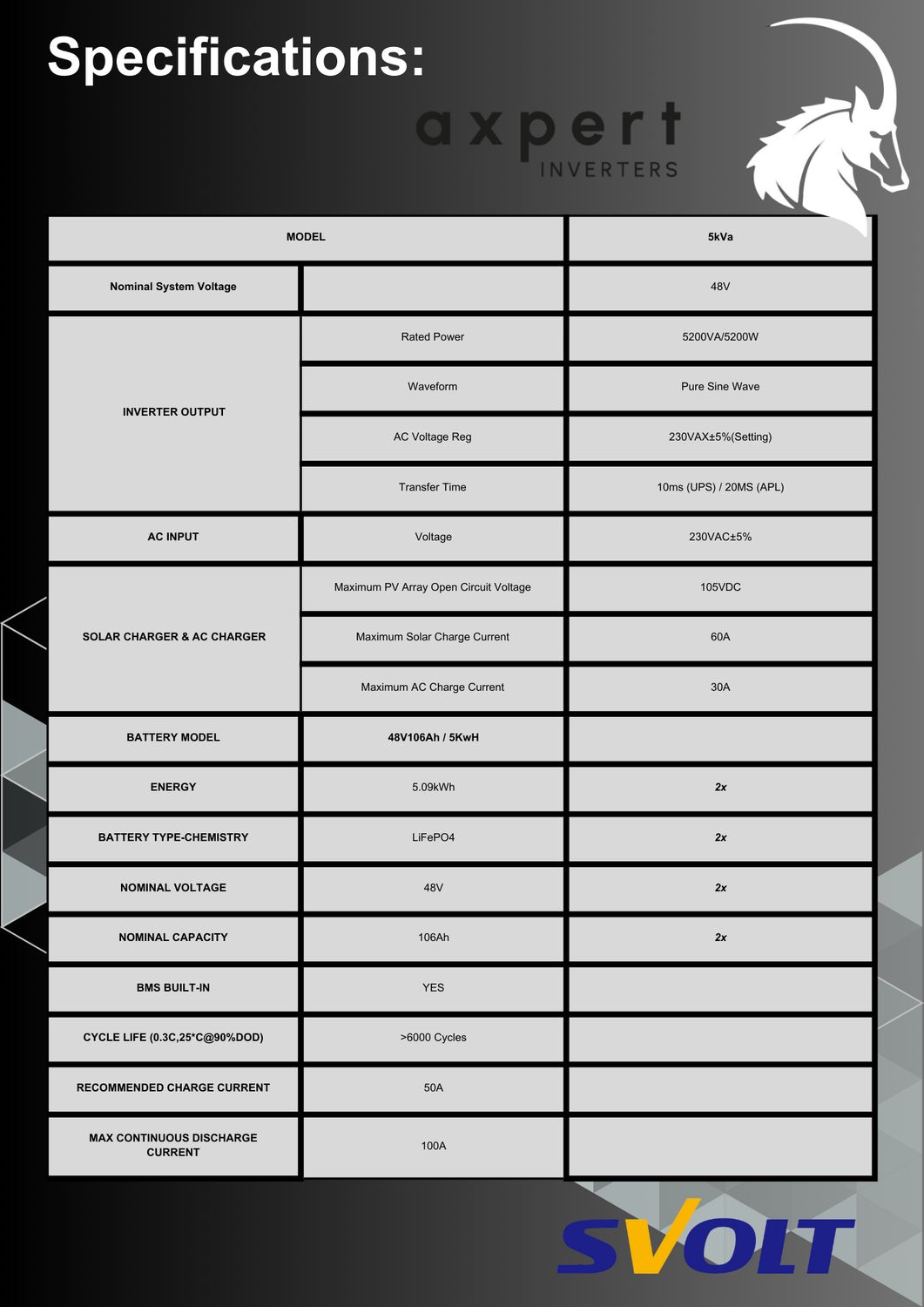

• 5kVa hybrid inverter

Power Management Features

• 5kVa continuous output
• 10kWh lithium battery storage
• Advanced MPPT tracking
• Advanced Battery Management System (BMS)
• Flexible operating modes
• Critical load management

Ideal Applications:

• Small to medium homes
• Standard appliances
• Home office equipment
• Single air conditioning unit
• Kitchen appliances
• Entertainment systems
• Security systems
• General lighting
• Computer systems
• Extended backup needs

System Specifications

• Solar input: 6.9kW
• Battery capacity: 10kWh
• Inverter rating: 5kVa
• Single-phase output
• Wall-mountable design
• Digital interface

Perfect For:

• 2-3 bedroom homes
• Small families
• Home offices
• Standard power needs
• Grid backup
• Energy independence
• Peak rate avoidance
• Extended backup duration
• High solar production
• Maximum energy harvest

This versatile solar and battery system provides reliable power output with substantial backup capacity. The 5kVa inverter efficiently handles standard household loads, while the enhanced 6.9kW solar array maximises energy generation.

Perfect for homes seeking to maximize solar production while maintaining extended backup capability.

The 10kWh battery capacity offers extended autonomy during outages, ideal for maintaining essential operations.

Professional installation recommended but not included.

The large solar array requires split string configuration - consult with installer for optimal setup.
